差分晶振是指能夠輸出差分信號的晶振,輸出差分信號使用2種相位彼此完全相反的信號，從而消除了共模噪聲,并產生一個更高性能的系統

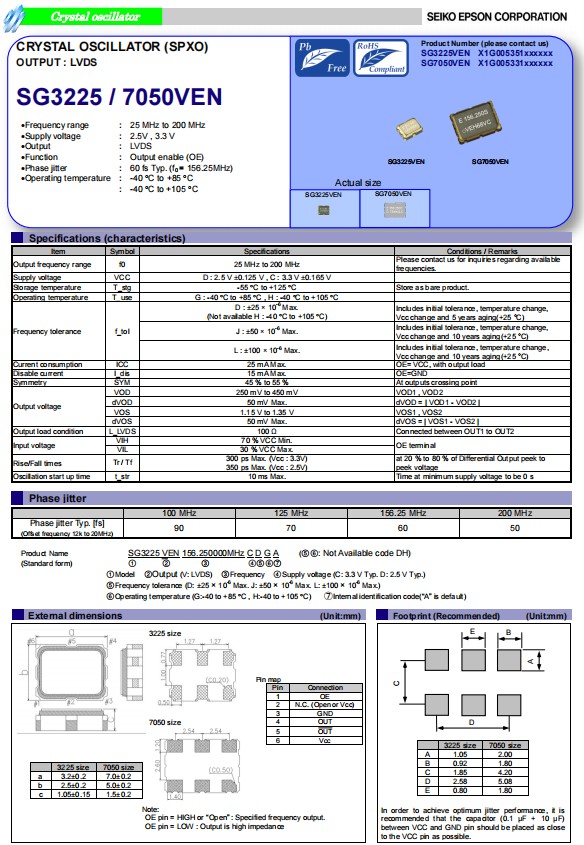

愛普生晶振SG3225VEN，是一款LVDS差分晶振，小體積晶振尺寸3.2x2.5mm有源晶振，石英晶體振蕩器，寬頻率范圍：25MHz至200MHz，電源電壓2.5V,3.3V低消耗電流，具有高性能,低功耗,低噪聲,低抖動,低損耗等特點.被廣泛用于通訊設備,機頂盒,光端機,安防設備及各種頻率控制設備上.
SG3225VEN具有LVDS輸出差分信號的晶振,X1G005351001200,差分貼片晶振

Product Number	Model	EPSON晶振	LxWxH	Output Wave
X1G005351000100	SG3225VEN	72.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G005351000200	SG3225VEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G005351000300	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G005351000700	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G005351000800	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G005351001100	SG3225VEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G005351001200	SG3225VEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G005351001900	SG3225VEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G005351002000	SG3225VEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G005351002100	SG3225VEN	148.351640 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G005351002200	SG3225VEN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G005351002300	SG3225VEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G005351002400	SG3225VEN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G005351002600	SG3225VEN	30.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G005351002700	SG3225VEN	36.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS

SG3225VEN具有LVDS輸出差分信號的晶振,X1G005351001200,差分貼片晶振
差分貼片晶振是普通貼片晶振所不能夠達到的,差分晶振具有低電平,低抖動,低功耗等特性.差分晶振作為目前行業中高要求,要技術石英晶體振蕩器,具有相位低,損耗低的特點。愛普生晶振的差分晶振使用于產品中能夠很容易地識別小信號,能夠從容精確地處理雙級信號,對外部電磁干擾(EMI)是高度免疫的,差分石英晶振滿足市場需求,實現高頻高精度等要求,更加保障了各種系統參考時鐘的可靠性.
