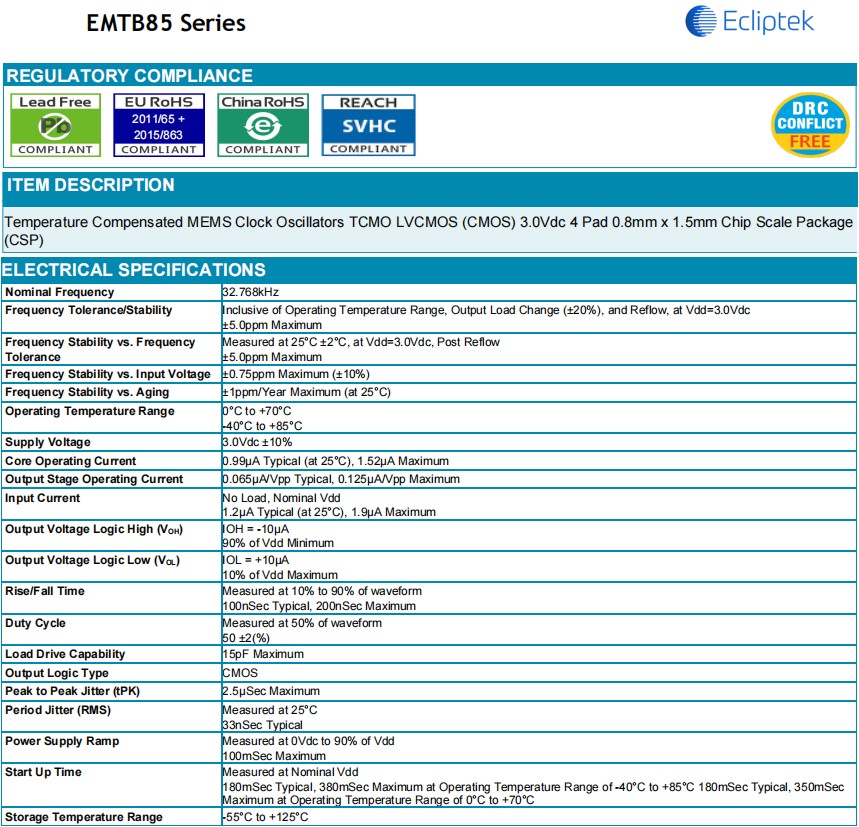

Ecliptek日蝕晶振EMTB85，是一款超小型晶振尺寸1.5x0.8mm四腳貼片晶振，頻率32.768KHz，有源晶振，溫補晶振，溫度補償?shù)腗EMS時鐘振蕩器TCMO LVCMOS（CMOS）電源電壓：3.0V，工作溫度范圍：-40℃至+85℃，超小型，輕薄型，低抖動，低功耗，低相位噪聲，低耗能，低損耗，低電源電壓，低電平等特點，有源晶振應用于：通訊設備，無線網絡，藍牙模塊，GPS定位系統，時鐘電子，物聯網，安防設備，可穿戴設備，智能家居，儀器儀表設備，數碼電子等應用。溫度補償?shù)腗EMS時鐘振蕩器EMTB85A8D-32.768K儀器儀表應用晶振

石英貼片晶振	輸出	電源電壓	包裝	頻率穩定性	工作溫度
EMTB81A3D-32.768K	CMOS	1.8Vdc	CSP 0.8mm x 1.5mm	±5.0ppm	0°C to +70°C
EMTB81A8D-32.768K	CMOS	1.8Vdc	CSP 0.8mm x 1.5mm	±5.0ppm	-40°C to +85°C
EMTB82A3D-32.768K	CMOS	2.5Vdc	CSP 0.8mm x 1.5mm	±5.0ppm	0°C to +70°C
EMTB82A8D-32.768K	CMOS	2.5Vdc	CSP 0.8mm x 1.5mm	±5.0ppm	-40°C to +85°C
EMTB83A3D-32.768K	CMOS	3.3Vdc	CSP 0.8mm x 1.5mm	±5.0ppm	0°C to +70°C
EMTB83A8D-32.768K	CMOS	3.3Vdc	CSP 0.8mm x 1.5mm	±5.0ppm	-40°C to +85°C
EMTB84A3D-32.768K	CMOS	2.8Vdc	CSP 0.8mm x 1.5mm	±5.0ppm	0°C to +70°C
EMTB84A8D-32.768K	CMOS	2.8Vdc	CSP 0.8mm x 1.5mm	±5.0ppm	-40°C to +85°C
EMTB85A3D-32.768K	CMOS	3.0Vdc	CSP 0.8mm x 1.5mm	±5.0ppm	0°C to +70°C
EMTB85A8D-32.768K	CMOS	3.0Vdc	CSP 0.8mm x 1.5mm	±5.0ppm	-40°C to +85°C
EQTB31D1DH-32.768K	CMOS	1.8Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	0°C to +50°C
EQTB31D2DH-32.768K	CMOS	1.8Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-10°C to +60°C
EQTB31D3DH-32.768K	CMOS	1.8Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	0°C to +70°C
EQTB31D4DH-32.768K	CMOS	1.8Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-20°C to +70°C
EQTB31D5DH-32.768K	CMOS	1.8Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-30°C to +60°C
EQTB31D6DH-32.768K	CMOS	1.8Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-30°C to +75°C
EQTB31D7DH-32.768K	CMOS	1.8Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-30°C to +85°C
EQTB31D8DH-32.768K	CMOS	1.8Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-40°C to +85°C
EQTB32D1DH-32.768K	CMOS	2.5Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	0°C to +50°C
EQTB32D2DH-32.768K	CMOS	2.5Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-10°C to +60°C
EQTB32D3DH-32.768K	CMOS	2.5Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	0°C to +70°C
EQTB32D4DH-32.768K	CMOS	2.5Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-20°C to +70°C
EQTB32D5DH-32.768K	CMOS	2.5Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-30°C to +60°C
EQTB32D6DH-32.768K	CMOS	2.5Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-30°C to +75°C
EQTB32D7DH-32.768K	CMOS	2.5Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-30°C to +85°C
EQTB32D8DH-32.768K	CMOS	2.5Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-40°C to +85°C
EQTB33D1DH-32.768K	CMOS	3.3Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	0°C to +50°C
EQTB33D2DH-32.768K	CMOS	3.3Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-10°C to +60°C
EQTB33D3DH-32.768K	CMOS	3.3Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	0°C to +70°C
EQTB33D4DH-32.768K	CMOS	3.3Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-20°C to +70°C
EQTB33D5DH-32.768K	CMOS	3.3Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-30°C to +60°C
EQTB33D6DH-32.768K	CMOS	3.3Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-30°C to +75°C
EQTB33D7DH-32.768K	CMOS	3.3Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-30°C to +85°C
EQTB33D8DH-32.768K	CMOS	3.3Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-40°C to +85°C
EQTB35D1DH-32.768K	CMOS	3.0Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	0°C to +50°C
EQTB35D2DH-32.768K	CMOS	3.0Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-10°C to +60°C
EQTB35D3DH-32.768K	CMOS	3.0Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	0°C to +70°C
EQTB35D4DH-32.768K	CMOS	3.0Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-20°C to +70°C
EQTB35D5DH-32.768K	CMOS	3.0Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-30°C to +60°C
EQTB35D6DH-32.768K	CMOS	3.0Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-30°C to +75°C
EQTB35D7DH-32.768K	CMOS	3.0Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-30°C to +85°C
EQTB35D8DH-32.768K	CMOS	3.0Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-40°C to +85°C
EQTB3AD1DH-32.768K	CMOS	5.0Vdc	SMD晶振	±5.0ppm	0°C to +50°C
EQTB3AD2DH-32.768K	CMOS	5.0Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-10°C to +60°C
EQTB3AD3DH-32.768K	CMOS	5.0Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	0°C to +70°C
EQTB3AD4DH-32.768K	CMOS	5.0Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-20°C to +70°C
EQTB3AD5DH-32.768K	CMOS	5.0Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-30°C to +60°C
EQTB3AD6DH-32.768K	CMOS	5.0Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-30°C to +75°C
EQTB3AD7DH-32.768K	CMOS	5.0Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-30°C to +85°C
EQTB3AD8DH-32.768K	CMOS	5.0Vdc	SMD 2.5mm x 3.2mm	±5.0ppm	-40°C to +85°C

溫度補償?shù)腗EMS時鐘振蕩器EMTB85A8D-32.768K儀器儀表應用晶振，32.768KHz是款實時時鐘晶振，它的作用是可以產生時序電路基準信號。而之所以選用32.768K是因?yàn)樗?的15次冪，是因?yàn)榭梢院芫_的得到一秒的計時。不僅如此，包括所有的實時時鐘晶振一般都是32.768或其倍頻。32.768K晶振的負載電容都是12.5pf。常用32.768K晶振的電子產品有智能手機、智能手表、安防和可穿戴設備等等。也還有很多生活類、工業類電子也會常用到這款頻率的進口晶振。
