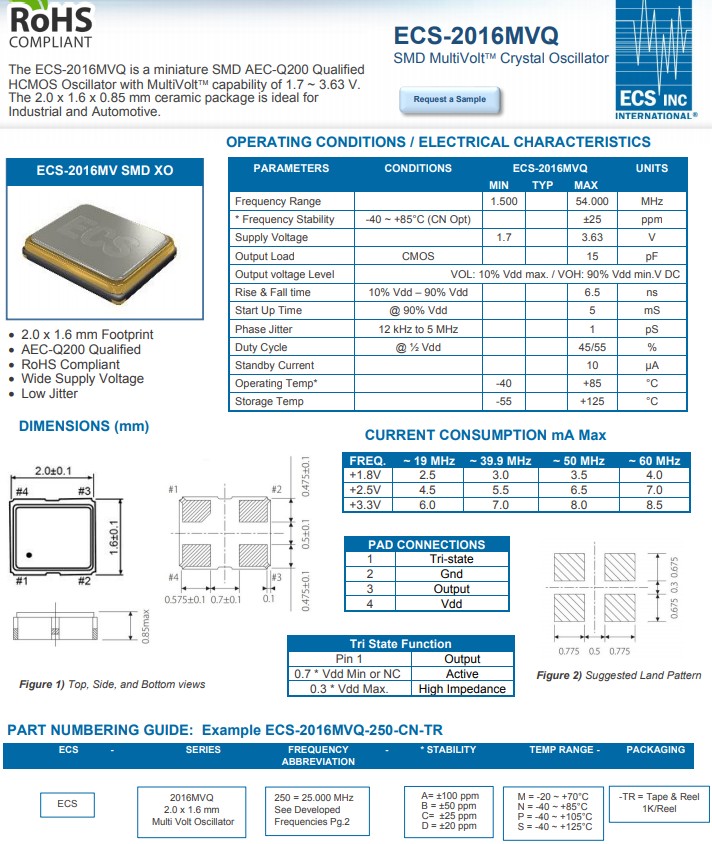

ECS晶振MVQ系列通過AEC-Q200認證的低功耗、固定頻率、低抖動、mulit volt SMD晶體振蕩器，小體積采用2.0x1.6x0.85mm陶瓷封裝四腳貼片晶振。MultiVolt特性允許客戶將同一器件用于不同電源電壓的多種設計，從而降低認證要求和庫存。ECS-2016MVQ是一款微型SMD AEC-Q200認證產品，寬電源電壓具有1.7V~3.63V多電壓能力的HCMOS振蕩器，符合RoHS標準，ECS-2016MVQ-120-BP-TR非常適合工業和汽車應用。

圖片	編碼	頻率	頻率穩定性	工作溫度
	ECS-2016MVQ-120-BP-TR	12 MHz	±50ppm	-40°C ~ 105°C
	ECS-2016MVQ-250-CN-TR	25 MHz	±25ppm	-40°C ~ 85°C

原廠代碼	品牌	有源晶振	頻率	工作溫度
ECS-1618-300-BN-TR	ECS Crystal	ECS-1618	30MHz	-40°C ~ 85°C
ECS-1618-300-BN-TR	ECS Crystal	ECS-1618	30MHz	-40°C ~ 85°C
ECS-1618-300-BN-TR	ECS Crystal	ECS-1618	30MHz	-40°C ~ 85°C
ECS-1633-480-BN-TR	ECS Crystal	ECS-1633	48MHz	-40°C ~ 85°C
ECS-1633-480-BN-TR	ECS Crystal	ECS-1633	48MHz	-40°C ~ 85°C
ECS-1633-480-BN-TR	ECS Crystal	ECS-1633	48MHz	-40°C ~ 85°C
ECS-1633-270-BN-TR	ECS Crystal	ECS-1633	27MHz	-40°C ~ 85°C
ECS-1633-270-BN-TR	ECS Crystal	ECS-1633	27MHz	-40°C ~ 85°C
ECS-1633-270-BN-TR	ECS Crystal	ECS-1633	27MHz	-40°C ~ 85°C
ECS-1618-060-BN-TR	ECS Crystal	ECS-1618	6MHz	-40°C ~ 85°C
ECS-1618-060-BN-TR	ECS Crystal	ECS-1618	6MHz	-40°C ~ 85°C
ECS-1618-060-BN-TR	ECS Crystal	ECS-1618	6MHz	-40°C ~ 85°C
ECS-1618-120-BN-TR	ECS Crystal	ECS-1618	12MHz	-40°C ~ 85°C
ECS-1618-120-BN-TR	ECS Crystal	ECS-1618	12MHz	-40°C ~ 85°C
ECS-1618-120-BN-TR	ECS Crystal	ECS-1618	12MHz	-40°C ~ 85°C
ECS-1618-192-BN-TR	ECS晶振	ECS-1618	19.2MHz	-40°C ~ 85°C
ECS-1618-192-BN-TR	ECS Crystal	ECS-1618	19.2MHz	-40°C ~ 85°C
ECS-1618-192-BN-TR	ECS Crystal	ECS-1618	19.2MHz	-40°C ~ 85°C
ECS-1618-260-BN-TR	ECS Crystal	ECS-1618	26MHz	-40°C ~ 85°C
ECS-1618-260-BN-TR	ECS Crystal	ECS-1618	26MHz	-40°C ~ 85°C
ECS-1618-260-BN-TR	ECS Crystal	ECS-1618	26MHz	-40°C ~ 85°C
ECS-1633-192-BN-TR	ECS Crystal	ECS-1633	19.2MHz	-40°C ~ 85°C
ECS-1633-192-BN-TR	ECS Crystal	ECS-1633	19.2MHz	-40°C ~ 85°C
ECS-1633-192-BN-TR	ECS Crystal	ECS-1633	19.2MHz	-40°C ~ 85°C
ECS-1633-240-BN-TR	ECS Crystal	ECS-1633	24MHz	-40°C ~ 85°C
