首頁進口晶振精工晶體12.5pF,Q-SC20S03205C5AAAF,2012mm,SC-20S,32.768K,SMD-2P

12.5pF,Q-SC20S03205C5AAAF,2012mm,SC-20S,32.768K,SMD-2P

編號：92640983
頻率：32.768KHz
尺寸：2.0x1.2mm

12.5pF,Q-SC20S03205C5AAAF,2012mm,SC-20S,32.768K,SMD-2P，日本進口SEIKO精工晶振，型號SC-20S，編碼Q-SC20S03205C5AAAF，是一款小體積晶振尺寸2.0x1.2x0.6mm封裝，兩腳貼片晶振，頻率32.768KHz晶振，負載12.5pF，20...

分享到

12.5pF,Q-SC20S03205C5AAAF,2012mm,SC-20S,32.768K,SMD-2P，日本進口SEIKO精工晶振，型號SC-20S，編碼Q-SC20S03205C5AAAF，是一款小體積晶振尺寸2.0x1.2x0.6mm封裝，兩腳貼片晶振，頻率32.768KHz晶振，負載12.5pF，±20ppm，無源晶振，石英晶體諧振器，無鉛環保晶振，石英晶振，具有超小型，輕薄型，耐沖擊性，耐熱性強，耐熱及耐環境特點。時鐘晶振被廣泛用于通訊設備，智能手機、可穿戴設備、無線藍牙模塊、電腦主板，鐘表電子，儀器儀表，兒童手表，消費產品，數碼電子，各種微機子時鐘等。

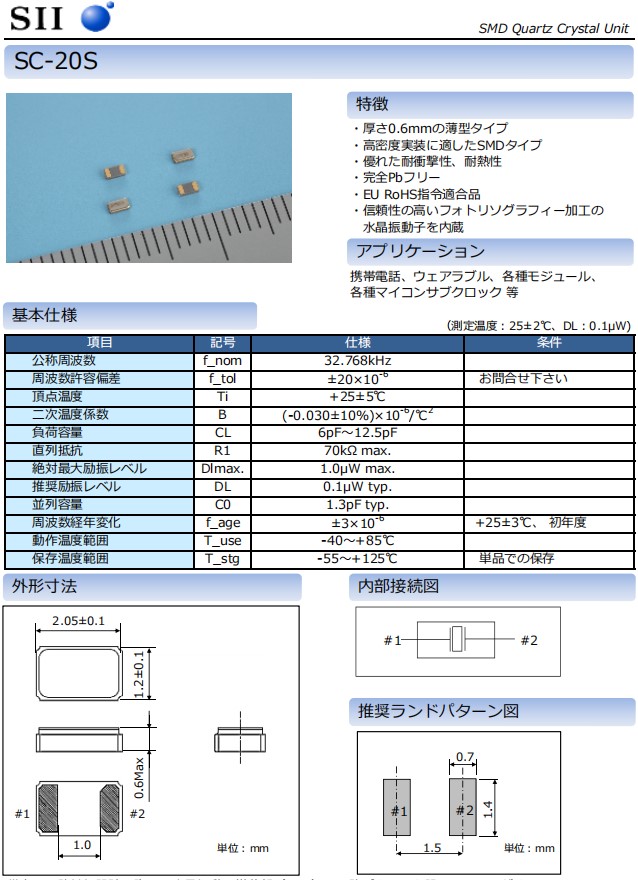

12.5pF,Q-SC20S03205C5AAAF,2012mm,SC-20S,32.768K,SMD-2P 參數圖

公稱周波數	_nom	32 .768kHz
周波數許容偏差	f_tol	±20×10-6
頂點溫度	Ti	+25±5℃
二次溫度保數	B	(-0 .030±10%)×10-6/℃2
負荷容量	CL	6pF~12 .5pF
直列抵抗	R1	70kΩ max .
絕對最大激勵水平	Dlmax .	1 .0μW max .
推薦激勵水平	DL	0 . 1μW typ .
並列容量	C0	1 .3pF typ .
周波數經年變化	f_age	±3×10-6
動作溫度範函	T_use	-40~+85℃
保存溫度範函	T_stg	-55~+125℃

12.5pF,Q-SC20S03205C5AAAF,2012mm,SC-20S,32.768K,SMD-2P 尺寸圖

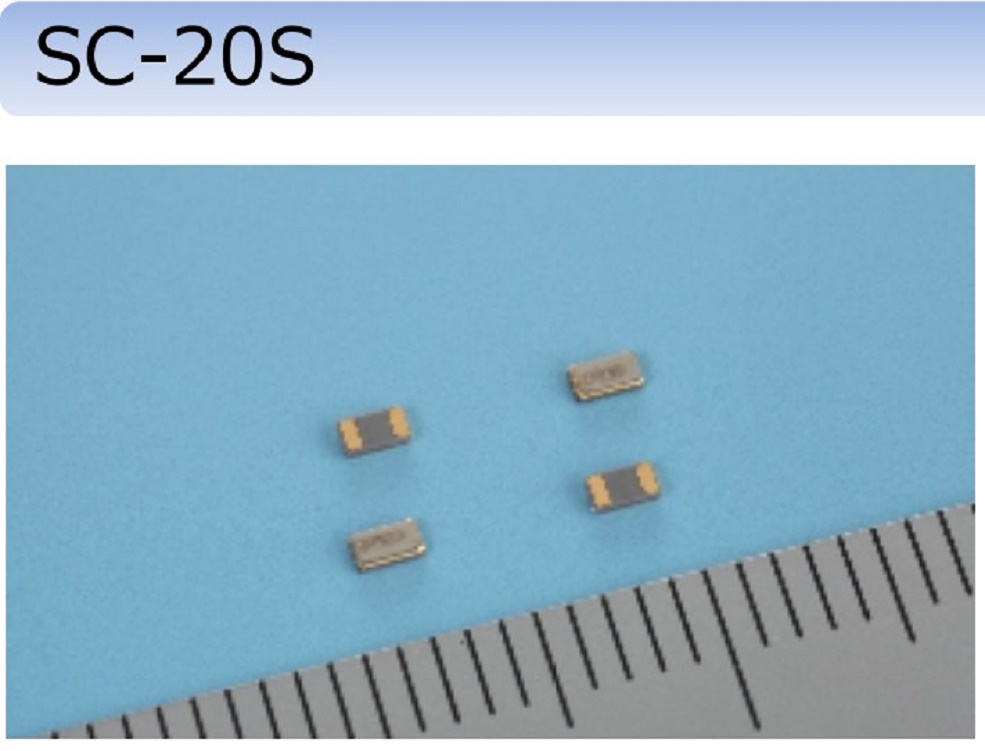

12.5pF,Q-SC20S03205C5AAAF,2012mm,SC-20S,32.768K,SMD-2P
特征：
超薄型0.6mm厚度
SMD型高和耐沖擊性，耐熱性強
完全無Pb（8 RoHS合件，
內置可靠的光刻石英振子

原廠編碼	晶振廠家	型號	頻率	頻率穩定度	負載電容
Q-SC16S03220C5AAAF	Seiko晶振	SC-16S	32.768kHz	±20ppm	12.5pF
Q-SC16S03210C5AAAF	Seiko晶振	SC-16S	32.768kHz	±10ppm	12.5pF
Q-SC16S03205C5AAAF	Seiko晶振	SC-16S	32.768kHz	±5ppm	12.5pF
Q-SC16S0322070CAAF	Seiko晶振	SC-16S	32.768kHz	±20ppm	7pF
Q-SC16S0321070CAFF	Seiko晶振	SC-16S	32.768kHz	±10ppm	7pF
Q-SC16S0320570CADF	Seiko晶振	SC-16S	32.768kHz	±5ppm	7pF
Q-SC20S0322070CAAF	Seiko晶振	SC-20S	32.768kHz	±20ppm	7pF
Q-SC20S0321070CAFF	Seiko晶振	SC-20S	32.768kHz	±10ppm	7pF
Q-SC20S0320570CADF	Seiko晶振	SC-20S	32.768kHz	±5ppm	7pF
Q-SC20S03220C5AAAF	Seiko晶振	SC-20S	32.768kHz	±20ppm	12.5pF
Q-SC20S03210C5AAAF	Seiko晶振	SC-20S	32.768kHz	±10ppm	12.5pF
Q-SC20S03205C5AAAF	Seiko晶振	SC-20S	32.768kHz	±5ppm	12.5pF
Q-SC32S03220C5AAE	Seiko晶振	SC-32S	32.768kHz	±20ppm	12.5pF
Q-SC32S03210C5AFE	Seiko晶振	SC-32S	32.768kHz	±10ppm	12.5pF
Q-SC32S03205C5ADE	Seiko晶振	SC-32S	32.768kHz	±5ppm	12.5pF
Q-SC32S0320570CADF	Seiko晶振	SC-32S	32.768kHz	±5ppm	7pF
Q-SC32S0321070CAAF	Seiko晶振	SC-32S	32.768kHz	±10ppm	7pF
Q-SC32S0322070AAAF	Seiko晶振	SC-32S	32.768kHz	±20ppm	7pF
Q-SC32S03220C5AAAF	Seiko晶振	SC-32S	32.768kHz	±20ppm	12.5pF
Q-SC32S03210C5AAFF	Seiko晶振	SC-32S	32.768kHz	±10ppm	12.5pF
Q-SC32S03205C5AADF	Seiko晶振	SC-32S	32.768kHz	±5ppm	12.5pF
Q-SPT2S0327620C5DJ	Seiko晶振	SP-T2A-F	32.768kHz	±20ppm	12.5pF
Q-SPT7P032762070FF	Seiko晶振	SSP-T7-F	32.768kHz	±20ppm	7pF
Q-SPT7P032761070FF	Seiko晶振	SSP-T7-F	32.768kHz	±10ppm	7pF
Q-SPT7P032760570FF	Seiko晶振	SSP-T7-F	32.768kHz	±5ppm	7pF
Q-SPT7P0327620C5GF	Seiko晶振	SSP-T7-F	32.768kHz	±20ppm	12.5pF
Q-SPT7P0327610C5GF	Seiko晶振	SSP-T7-F	32.768kHz	±10ppm	12.5pF
Q-SPT7P0327605C5GF	Seiko晶振	SSP-T7-F	32.768kHz	±5ppm	12.5pF
VT200F-6PF20PPM	Seiko晶振	VT-200-F	32.768kHz	-	6pF
VT200F-12.5PF20PPM	Seiko晶振	VT-200-F	32.768kHz	-	12.5pF

12.5pF,Q-SC20S03205C5AAAF,2012mm,SC-20S,32.768K,SMD-2P， 2012mm體積的晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接（產品無鉛對應）,為無鉛產品.
