- 編號：49651259
- 頻率：8MHZ
- 尺寸：5.0*3.2mm

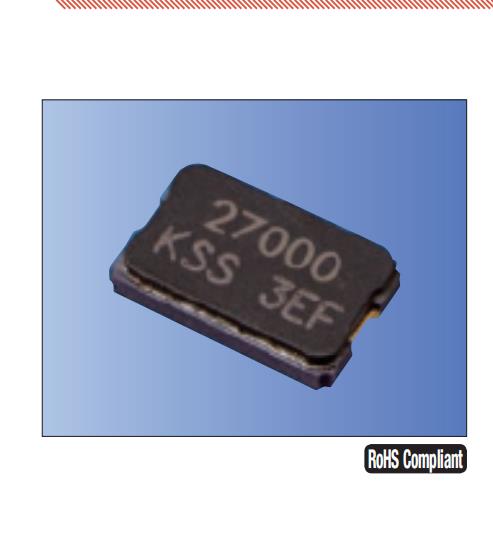

CX5032GB08000H0HPQZ1數據手冊,CX5032G,汽車音響,5032mm,8MHZ
CX5032GB08000H0HPQZ1數據手冊,CX5032G,汽車音響,5032mm,8MHZ，尺寸為5032mm,頻率為8MHZ，日本京瓷晶振，Kyocera晶振，日本進口晶振，貼片晶振，無源晶體，水晶振動子，音叉晶體，無源貼片晶振，陶瓷晶振，無源諧振器...
.jpg)
CX5032GB08000H0HPQZ1數據手冊,CX5032G,汽車音響,5032mm,8MHZ，尺寸為5032mm,頻率為8MHZ，日本京瓷晶振，Kyocera晶振，日本進口晶振，貼片晶振，無源晶體，水晶振動子，音叉晶體，無源貼片晶振，陶瓷晶振，無源諧振器，汽車音響專用晶振，數字電子專用晶振，小型設備晶振，消費品專用晶振，汽車配件晶振。5032陶瓷面諧振器產品主要應用程序：數字電子，消費品，汽車音響及配件，通信產品，無線設備等領域。CX5032GB08000H0HPQZ1數據手冊,CX5032G,汽車音響,5032mm,8MHZ.
.gif)

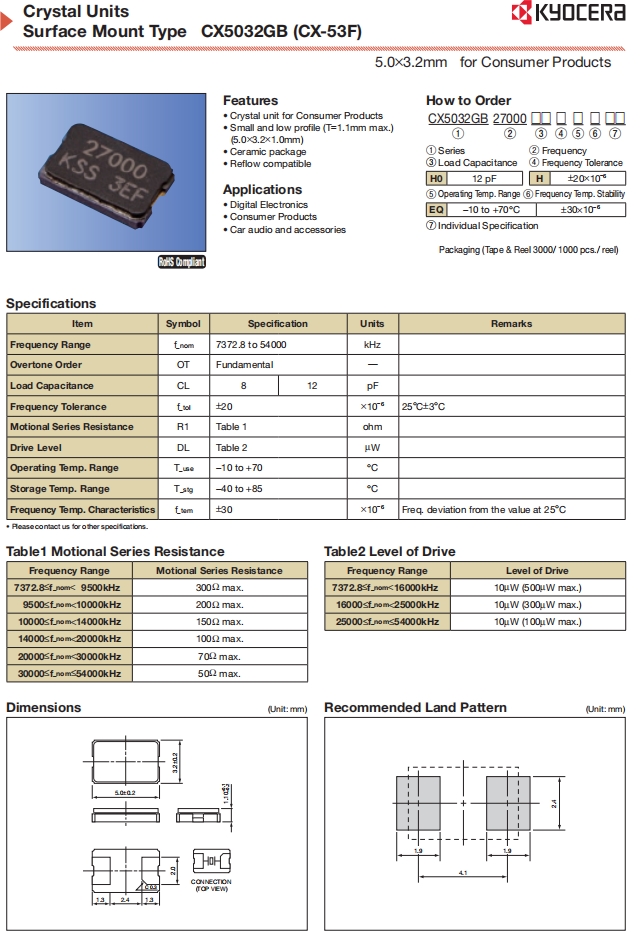

CX5032GB08000H0HPQZ1數據手冊,CX5032G,汽車音響,5032mm,8MHZ 參數表
| Item | Symbol | Specification | Units | Remarks | |||||||||||
| Frequency Range | f_nom | 7372.8 to 54000 | kHz | ||||||||||||
| Overtone Order | OT | Fundamental | ― | ||||||||||||
| Load Capacitance | CL | 8 | 12 | pF | |||||||||||
| Frequency Tolerance | f_tol | ±20 | × 10-6 | 25°C±3°C | |||||||||||
| Motional Series Resistance | R1 | Table 1 | ohm | ||||||||||||
| Drive Level | DL | Table 2 |
 W |
||||||||||||
| Operating Temp. Range | T_use | -10 to +70 | °C | ||||||||||||
| Storage Temp. Range | T_stg | -40 to +85 | °C | ||||||||||||
| Frequency Temp. Characteristics | f_tem | ±30 | × 10-6 | Freq. deviation from the value at 25°C | |||||||||||
.gif)

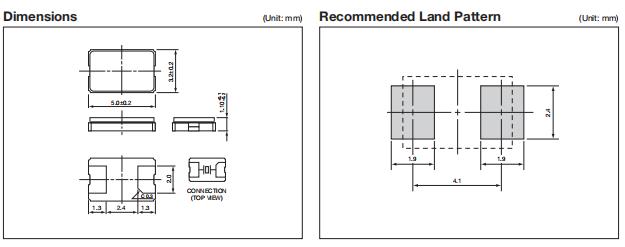

CX5032GB08000H0HPQZ1數據手冊,CX5032G,汽車音響,5032mm,8MHZ 尺寸圖
特征：
•水晶單位的消費產品
•小而低調(T=1.1mm max.)
(5.0×3.2×1.0毫米)
•陶瓷封裝
•回流兼容
更多相關日本京瓷晶振型號
| 原廠編碼 | 廠家 | 型號 | 系列 | 頻率 | 工作溫度 |
| CX5032GA08000H0PST02 | AVX Corp/Kyocera Corp | CX5032GA, Kyocera | MHz Crystal | 8MHz | -40°C ~ 125°C |
| CX5032GB10000H0PESZZ | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | MHz Crystal | 10MHz | -10°C ~ 70°C |
| CX5032GB16000H0PESZZ | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | MHz Crystal | 16MHz | -10°C ~ 70°C |
| CX5032GB20000H0PESZZ | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | MHz Crystal | 20MHz | -10°C ~ 70°C |
| CX5032GB12000H0HPQZ1 | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | MHz Crystal | 12MHz | -40°C ~ 85°C |
| CX5032GB27000H0PESZZ | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | MHz Crystal | 27MHz | -10°C ~ 70°C |
| CX5032GB14318H0PESZZ | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | MHz Crystal | 14.31818MHz | -10°C ~ 70°C |
| CX2520SB24000D0PESZZ | AVX Corp/Kyocera Corp | CX2520SB, Kyocera | MHz Crystal | 24MHz | -10°C ~ 70°C |
| CX-96F-040.000-E0107 | AVX Corp/Kyocera Corp | CX5032SB, Kyocera | MHz Crystal | 40MHz | 0°C ~ 85°C |
| CX5032GB16000H0HPQZ1 | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | MHz Crystal | 16MHz | -40°C ~ 85°C |
| CX5032GB08000H0HPQZ1 | 京瓷晶振 | CX5032GB, Kyocera | MHz Crystal | 8MHz | -40°C ~ 85°C |
| CX5032GB10000H0HPQZ1 | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | MHz Crystal | 10MHz | -40°C ~ 85°C |
| CX5032GB14745H0PESZZ | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | MHz Crystal | 14.7456MHz | -10°C ~ 70°C |
| CX5032GB24576H0PESZZ | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | MHz Crystal | 24.576MHz | -10°C ~ 70°C |
| CX2520SB13560D0GEJCC | AVX Corp/Kyocera Corp | CX2520SB, Kyocera | MHz Crystal | 13.56MHz | -10°C ~ 70°C |
| CX2520SB40000H0WZK06 | AVX Corp/Kyocera Corp | CX2520SB, Kyocera | MHz Crystal | 40MHz | 0°C ~ 85°C |
| CX2520SB40000H0DZF08 | AVX Corp/Kyocera Corp | CX2520SB, Kyocera | MHz Crystal | 40MHz | -10°C ~ 85°C |
| CX5032GB08000H0HEQZ1 | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | MHz Crystal | 8MHz | -10°C ~ 70°C |
| CX5032GB12000H0PESZZ | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | MHz Crystal | 12MHz | -10°C ~ 70°C |
| CX5032SA08000H0PSVZ1 | AVX Corp/Kyocera Corp | CX5032SA, Kyocera | MHz Crystal | 8MHz | -40°C ~ 125°C |
| CX5032GB19200P0HEQZ1 | AVX Corp/Kyocera Corp | CX5032GB, Kyocera | MHz Crystal | 19.2MHz | -10°C ~ 70°C |
| CX2520SB13560D0GEJZ1 | AVX Corp/Kyocera Corp | CX2520SB, Kyocera | MHz Crystal | 13.56MHz | -10°C ~ 70°C |
