    X1G0042510029-SG3225EAN石英晶體振蕩器-差分貼片晶振

  • 編號：91053632
  • 頻率：74.25MHz
  • 尺寸：3.2×2.5×1.05 mm
  • RoHS
  • RoHS2
日本愛普生晶振,X1G0042510029晶振,SG3225EAN石英晶體振蕩器,差分貼片晶振,進口有源晶振,LVDS輸出晶振,3225mm貼片晶振,頻率74.25MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性50ppm,網絡交換機晶振,路由器晶振,SATA晶振...


X1G0042510029-SG3225EAN石英晶體振蕩器-差分貼片晶振 ,日本愛普生晶振,X1G0042510029晶振,SG3225EAN石英晶體振蕩器,差分貼片晶振,進口有源晶振,LVDS輸出晶振,3225mm貼片晶振,頻率74.25MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性50ppm,網絡交換機晶振,路由器晶振,SATA晶振,電信交換機晶振,便攜式多媒體設備晶振.
X1G0042510029-SG3225EAN石英晶體振蕩器-差分貼片晶振特點：
●通過鎖相環技術實現了寬頻率范圍和基本AT晶體單位
●頻率范圍:73.5 MHz至700 MHz
●電源電壓:2.5 V至3.3 V
●功能:輸出使能(OE)
●輸出:LV-PECL或LVDS
X1G0042510029-SG3225EAN石英晶體振蕩器-差分貼片晶振參數表
項目 符號 規格說明 條件
額定頻率 f_nom 74.25MHz 請聯系我們以便獲取其它可用頻率的相關信息
電源電壓 Vcc 3.3V
儲存溫度 T_stg -55℃~+125℃ 裸存
工作溫度 T_use -40℃~ +85℃
頻率公差（標準） f_tol ±50 ppm +25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電流消耗 f_tem 30mA Max
OE = Vcc,L_LVDS = 100 Ω
禁用電流 I_dis 20mA Max OE=GND
對稱性（占空比） SYM 45%~55% 在輸出交叉點
輸出電壓 VOD 250mV to 450mV
DC characteristics
VOS 1.15V to 1.35V
輸出負載條件 L_LVDS 100Ω
Connected between OUT and OUT
輸入電壓 VIH 70%Vcc Min
OE or ST terminal
VIL 30%Vcc Max
上升下降時間 tr/tf 300ps Max
Between 20 % and 80 %of Differential Output
peak to peak voltage
起始時間 t str 3ms Max Time at minimum supply voltage to be 0
相位抖動 tpj 0.6ps Max
Offset frequency: 12 kHz to 20 MHz
老化
f_age
± 5 ×10-6 / year Max
+25 °C, First year, VCC = 2.5 V, 3.3 V

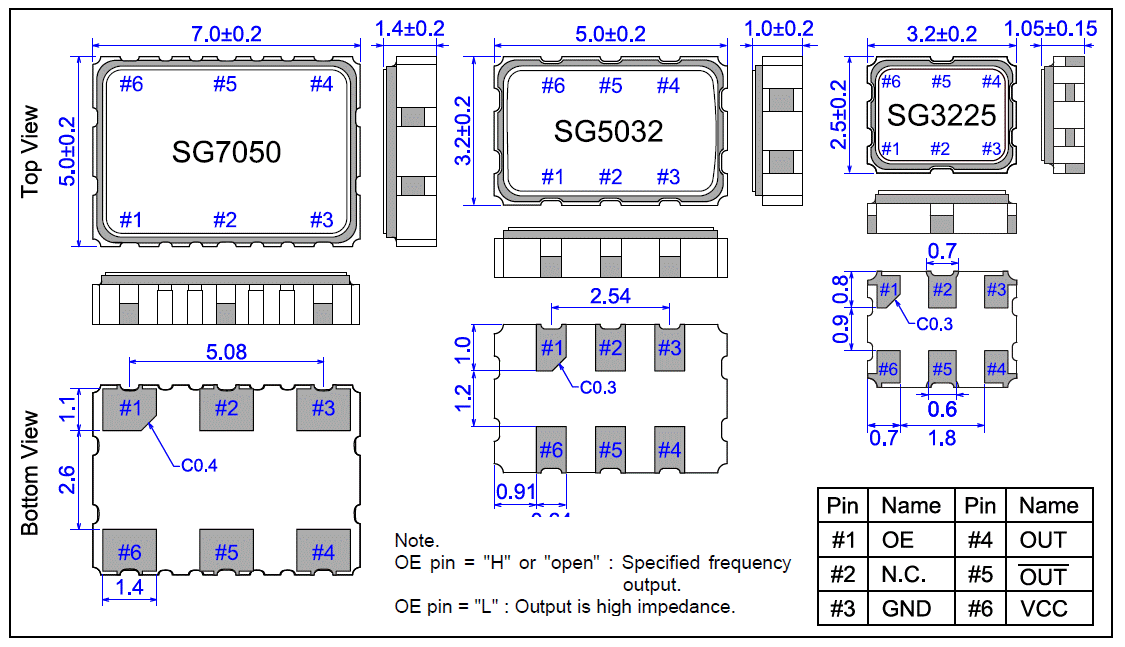

X1G0042510029-SG3225EAN石英晶體振蕩器-差分貼片晶振 尺寸圖

編碼 型號 頻率 LxWxH/尺寸 輸出方式 電源電壓 工作溫度
X1G0042410001 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410002 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410004 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410005 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410006 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410007 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410008 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410009 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410010 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410011 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410012 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410014 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410015 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410016 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410017 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410020 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410021 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410023 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410024 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410025 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410026 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410027 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410028 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410029 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410030 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410031 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410033 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410034 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410035 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410036 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410039 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410040 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410042 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410043 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410044 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410045 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410046 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410047 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410048 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410049 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410050 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410052 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410053 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410054 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410055 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410058 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410059 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410061 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410062 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410063 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410064 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410065 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410066 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410067 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410068 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410069 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410071 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410072 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410073 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410074 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410079 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410080 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410083 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410084 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410087 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410088 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410092 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410100 SG3225VAN 133.333333 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410101 SG3225VAN 148.350000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410102 SG3225VAN 114.285000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410103 SG3225VAN 250.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410104 SG3225VAN 350.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410105 SG3225VAN 80.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410106 SG3225VAN 98.304000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410108 SG3225VAN 297.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042510001 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510002 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510003 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510004 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510006 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510007 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510008 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510009 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510010 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510011 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510012 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510013 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510014 SG3225EAN 155.520000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510015 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510016 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510017 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510018 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510021 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510022 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510024 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510025 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510026 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510027 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510028 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510029 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510030 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510031 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510032 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510033 SG3225EAN 155.520000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510034 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510035 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510036 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510037 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510039 SG3225EAN 700.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510040 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510041 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510043 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510044 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510045 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510046 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510047 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510048 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510049 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510050 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510051 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510053 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510054 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510055 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510056 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510059 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510060 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510062 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510063 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510064 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510065 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510066 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510067 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510068 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510069 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510070 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510072 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510073 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510074 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510079 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510080 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510083 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510084 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510087 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510088 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510091 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510092 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510100 SG3225EAN 114.285000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510103 SG3225EAN 644.531200 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510104 SG3225EAN 250.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510105 SG3225EAN 350.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510106 SG3225EAN 80.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510107 SG3225EAN 98.304000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510111 SG3225EAN 133.330000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510112 SG3225EAN 144.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510113 SG3225EAN 174.703100 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510114 SG3225EAN 320.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510115 SG3225EAN 500.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510121 SG3225EAN 161.132812 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
1.技術支持                                                                        2.客服咨詢
全方位技術指導,專業的技術支持讓您感受到                 專業的銷售團隊,耐心為您解答任何疑問,讓您的
前所未有的后顧無憂.                                                          消費得到保障.
3.質量保證，誠信為上                                                    4.提升業績,降低成本
我司以“以科技為動力，以質量求生存”為理念.               為您的產品量身訂制,免費取樣,
                                                                                              為您做到低成本,高效率.
深圳市康華爾電子有限公司
電 話: +86-755-27838351
手 機：13823300879
傳 真: +86-755-27883106
Q Q: 632862232
MSN: konuaer@163.com
E-mail：konuaer@163.com
網  址：http://m.sedorisc.com
地  址：廣東深圳市寶安寶安大道東95號浙商銀行大廈1905


相關產品

誠征下列地區 晶振 | 石英晶振 | 圓柱晶振 | 貼片晶振 | 陶瓷晶振 | 石英晶體諧振器 | 頻率元件 的合作伙伴：
深圳市 廣州市 北京 上海 東莞 佛山 中山 順德 珠海 杭州 溫州 武漢 長沙 南京 大連 長春 西安 鄭州 澳門 沈陽 南寧 昆明 濟南 重慶 成都
有源晶振,表晶,石英晶振,,貼片晶振,聲表面濾波器,陶瓷晶振,陶瓷霧化片,陶瓷濾波器,微孔霧化片,微孔霧化片,單片158KHz微孔霧化片,單片陶瓷霧化片,霧化片,進口晶振,F11聲表面濾波器,TO-39聲表面濾波器,3*3貼片聲表面濾波器,KDS晶振,愛普生晶振,精工晶振,村田晶振,京瓷晶振,NDK晶振,NX3225SANDK晶振,NX5032GANDK晶振,有源晶振,溫補晶振,KDS晶振DST310S,愛普生晶振FC-135,愛普生晶振MC-146,精工晶振SC-32S,精工晶振SSP-T7;
在線客服
在線客服
close
在線客服 康華爾微信號
康華爾公眾號
主站蜘蛛池模板： 青青青操 | 极品少妇xxxx精品少妇 | 久久久久久一区二区三区 | 成人免费视频国产免费网站 | 在线成人av | www爱爱| 国产亚洲欧美视频 | 欧美福利在线观看 | 亚洲网址在线观看 | 麻豆传媒在线播放 | 日韩精品少妇 | 激情综合一区二区三区 | 免费看毛片的网站 | 森泽佳奈在线播放 | 国产精品18p | 国产在线播放网站 | 久久国产精品免费观看 | 亚洲精品国产一区二 | 国产一区二区精彩视频 | 久久久久久久9 | 久久av一区二区三区漫画 | 色婷婷在线影院 | 国产最新在线视频 | 日韩一区二区三区电影 | 在线观看高清视频 | 日本一区二区精品 | 日本伦理一区 | 男女一级片 | www.污视频| 日韩国产在线播放 | 91av久久| 91成人福利视频 | 99av国产精品欲麻豆 | 国产二区免费 | 亚洲精品国产无码 | 欧美亚洲精品一区二区 | 国产永久av | 三度诱惑免费版电影在线观看 | 91精品又粗又猛又爽 | 91新视频 | 逼特逼视频在线观看 | 国产中文字幕一区二区 | 爱的色放3 | 日本一本二本三区免费 | 欧美国产精品一二三 | 免费日韩网站 | 99久久久无码国产精品免费蜜柚 | 一卡二卡三卡四卡五卡 | 一区二区三区视频在线播放 | 玖草视频在线观看 | 就去吻综合 | av中文网| 波多野在线播放 | 狠色综合7777夜色撩人 | 国产精品无码成人网站视频 | 加勒比综合 | 欧美一区久久 | 免费在线观看a视频 | 欧美一区二区三区视频在线 | 你操综合| 国产福利小视频在线观看 | 成人久久久久久久 | 日韩成人在线影院 | 日本不卡二区 | 亚洲精品白浆高清久久久久久 | 激情视频在线播放 | 国产成人av无码精品 | 用力抵着尿进去了h | 婷婷久| 影音先锋中文在线 | 夜色在线视频 | 色屋在线 | av人人干| 国产美女精品视频 | 性生活毛片 | 第一页国产 | 国产精品黄色 | 成人免费看片&#39 | 久久人妻少妇嫩草av | 欧美性受xxxx | 短裙公车被强好爽h吃奶视频 | 96日本xxxxxⅹxxx70 | 亚洲乱码国产乱码精品精软件 | 天天干天天操天天爱 | 日本人毛片 | 免费一级做a爰片久久毛片潮 | 亚洲精品18p| 中出少妇 | 在线成人欧美 | 爱啪啪影视| 亚洲蜜桃精久久久久久久久久久久 | 成人午夜精品一区二区三区 | 久久神马影院 | 久久99久久99精品免观看软件 | 国产成人在线观看免费网站 | 国产精品久久久久久免费免熟 | 欧美xxxⅹ性欧美大片 | 亚洲男人的天堂在线 | 伊人久久大 |
