- 編號：84821046
- 頻率：24MHz
- 尺寸：7.0×5.0mm
XL-1C-024.0M|7050mm石英貼片晶振|6G路由器晶振
美國ConnorWinfield晶振,XL-1C無源晶振,XL-1C-024.0M晶振,7050mm晶振,石英貼片晶振,頻率24MHz,工作溫度-10~60°C,負載16pF,頻率穩定性50ppm,無鉛環保晶振,小體積晶振,6G路由器晶振,便攜式多媒體設備晶振,網絡系統晶振...
.jpg)
XL-1C-024.0M|7050mm石英貼片晶振|6G路由器晶振 ,美國ConnorWinfield晶振,XL-1C無源晶振,XL-1C-024.0M晶振,7050mm晶振,石英貼片晶振,頻率24MHz,工作溫度-10~60°C,負載16pF,頻率穩定性50ppm,無鉛環保晶振,小體積晶振,6G路由器晶振,便攜式多媒體設備晶振,網絡系統晶振,測試與測量設備晶振,服務器和存儲系統晶振.
.gif)

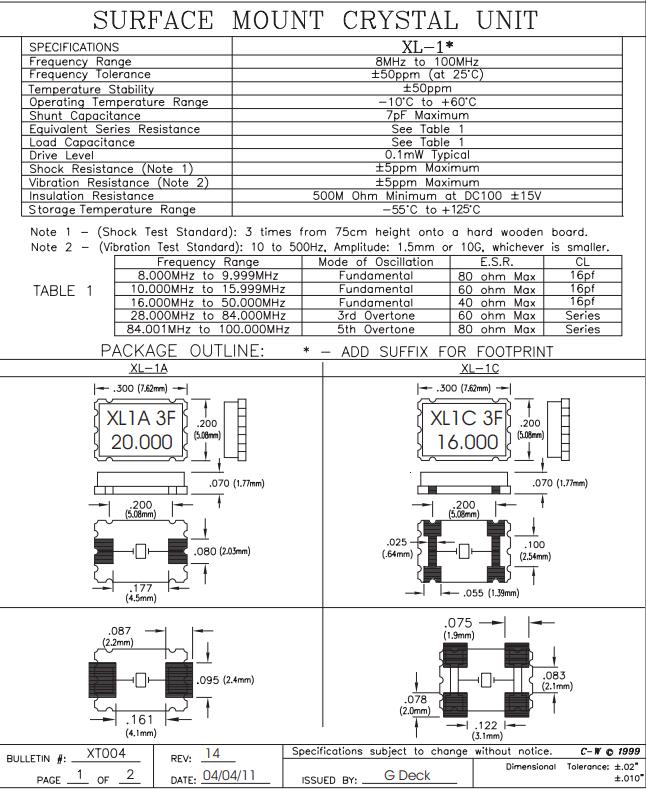

XL-1C-024.0M|7050mm石英貼片晶振|6G路由器晶振 參數表
| 項目 | 規格說明 |
| 額定頻率 | 24MHz |
| 頻率公差 @ 25ºC | ±50 ppm |
| 頻率穩定性與溫度變化的關系 | ±50 ppm |
| 工作溫度 | -10~+60°C |
| 并聯電容 | 7pF Max |
| 老化 | ±1ppm/Year |
| 負載:(CL） |
16pF
|
| 等效串聯電阻@ 25 °C | 40 Ohms max. |
| 驅動電平 | 0.1mW Typ |
| 絕緣電阻 | 500 Mohm |
| 儲存溫度 |
-55~125°C
|
.gif)

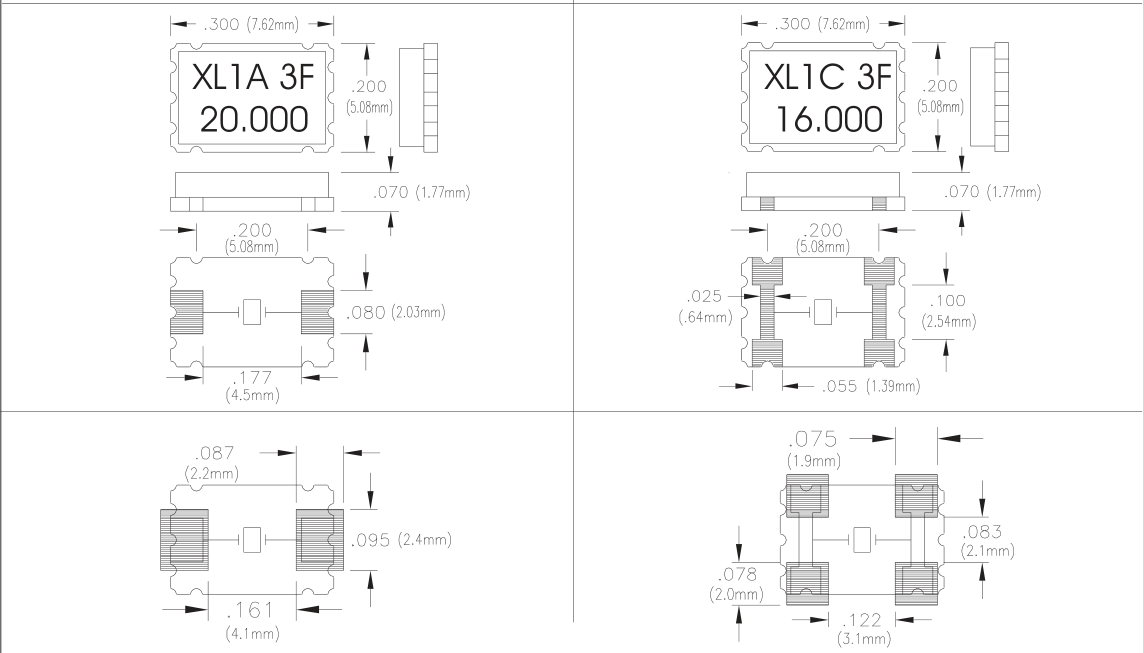

XL-1C-024.0M|7050mm石英貼片晶振|6G路由器晶振 尺寸圖
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率穩定度 | 頻率偏差 | 負載電容 | ESR電阻 | 工作溫度 |
| CS-018-114.285M | Connor-Winfield | CS-018 | 114.285MHz | ±100ppm | ±100ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| CS-018-114.285M | Connor-Winfield | CS-018 | 114.285MHz | ±100ppm | ±100ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| CS-018-114.285M | Connor-Winfield | CS-018 | 114.285MHz | ±100ppm | ±100ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| CS-023-114.285M | Connor-Winfield | CS-023 | 114.285MHz | ±20ppm | ±20ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| CS-023-114.285M | Connor-Winfield | CS-023 | 114.285MHz | ±20ppm | ±20ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| CS-023-114.285M | Connor-Winfield | CS-023 | 114.285MHz | ±20ppm | ±20ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| XL-1C-010.0M | Connor-Winfield | XL-1C | 10MHz | ±50ppm | ±50ppm | 16pF | 60 Ohm | -10°C ~ 60°C |
| XL-1C-010.0M | Connor-Winfield | XL-1C | 10MHz | ±50ppm | ±50ppm | 16pF | 60 Ohm | -10°C ~ 60°C |
| XL-1C-010.0M | Connor-Winfield | XL-1C | 10MHz | ±50ppm | ±50ppm | 16pF | 60 Ohm | -10°C ~ 60°C |
| XL-1C-012.0M | Connor-Winfield | XL-1C | 12MHz | ±50ppm | ±50ppm | 16pF | 60 Ohm | -10°C ~ 60°C |
| XL-1C-012.0M | Connor-Winfield | XL-1C | 12MHz | ±50ppm | ±50ppm | 16pF | 60 Ohm | -10°C ~ 60°C |
| XL-1C-012.0M | Connor-Winfield | XL-1C | 12MHz | ±50ppm | ±50ppm | 16pF | 60 Ohm | -10°C ~ 60°C |
| XL-1C-020.0M | Connor-Winfield | XL-1C | 20MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XL-1C-020.0M | Connor-Winfield | XL-1C | 20MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XL-1C-020.0M | Connor-Winfield | XL-1C | 20MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XL-1C-016.0M | Connor-Winfield | XL-1C | 16MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XL-1C-016.0M | Connor-Winfield | XL-1C | 16MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XL-1C-016.0M | Connor-Winfield | XL-1C | 16MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XM-1-012.0M | Connor-Winfield | XM-1 | 12MHz | ±50ppm | ±50ppm | 16pF | 50 Ohm | -10°C ~ 60°C |
| XM-1-012.0M | Connor-Winfield | XM-1 | 12MHz | ±50ppm | ±50ppm | 16pF | 50 Ohm | -10°C ~ 60°C |
| XM-1-012.0M | Connor-Winfield | XM-1 | 12MHz | ±50ppm | ±50ppm | 16pF | 50 Ohm | -10°C ~ 60°C |
| XM-1-016.0M | Connor-Winfield | XM-1 | 16MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XM-1-016.0M | Connor-Winfield | XM-1 | 16MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XM-1-016.0M | Connor-Winfield | XM-1 | 16MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XM-1-010.0M | Connor-Winfield | XM-1 | 10MHz | ±50ppm | ±50ppm | 16pF | 50 Ohm | -10°C ~ 60°C |
| XM-1-010.0M | Connor-Winfield | XM-1 | 10MHz | ±50ppm | ±50ppm | 16pF | 50 Ohm | -10°C ~ 60°C |
| XM-1-010.0M | Connor-Winfield | XM-1 | 10MHz | ±50ppm | ±50ppm | 16pF | 50 Ohm | -10°C ~ 60°C |
| CS-034-040.0M | Connor-Winfield | CS-034 | 40MHz | ±50ppm | ±30ppm | 10pF | 25 Ohm | -40°C ~ 85°C |
| CS-034-040.0M | Connor-Winfield | CS-034 | 40MHz | ±50ppm | ±30ppm | 10pF | 25 Ohm | -40°C ~ 85°C |
| CS-034-040.0M | Connor-Winfield | CS-034 | 40MHz | ±50ppm | ±30ppm | 10pF | 25 Ohm | -40°C ~ 85°C |
| CS-043-048.0M | Connor-Winfield | CS-043 | 48MHz | ±25ppm | ±15ppm | 8pF | 20 Ohm | -40°C ~ 85°C |
| CS-043-048.0M | Connor-Winfield | CS-043 | 48MHz | ±25ppm | ±15ppm | 8pF | 20 Ohm | -40°C ~ 85°C |
| CS-043-048.0M | Connor-Winfield | CS-043 | 48MHz | ±25ppm | ±15ppm | 8pF | 20 Ohm | -40°C ~ 85°C |
| CS-044-054.0M | Connor-Winfield | CS-044 | 54MHz | ±25ppm | ±15ppm | 8pF | 20 Ohm | -40°C ~ 85°C |
| CS-044-054.0M | Connor-Winfield | CS-044 | 54MHz | ±25ppm | ±15ppm | 8pF | 20 Ohm | -40°C ~ 85°C |
| CS-044-054.0M | Connor-Winfield | CS-044 | 54MHz | ±25ppm | ±15ppm | 8pF | 20 Ohm | -40°C ~ 85°C |
| XL-1C-018.432M | Connor-Winfield | XL-1C | 18.432MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XL-1C-018.432M | Connor-Winfield | XL-1C | 18.432MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XL-1C-018.432M | Connor-Winfield | XL-1C | 18.432MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XM-1-018.432M | Connor-Winfield | XM-1 | 18.432MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XM-1-018.432M | Connor-Winfield | XM-1 | 18.432MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| XM-1-018.432M | Connor-Winfield | XM-1 | 18.432MHz | ±50ppm | ±50ppm | 16pF | 40 Ohm | -10°C ~ 60°C |
| CS-018-114.285MHZ | Connor-Winfield | CS-018 | 114.285MHz | ±100ppm | ±100ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
