- 編號：24640659
- 頻率：16MHz
- 尺寸：11.4×4.7mm
Cardinal晶振,CSM1Z-A0B2C3-50-16.0D18,6G路由器晶振
美國Cardinal晶振,CSM1無源晶振,石英晶體諧振器,HC-49SMD晶振,CSM1Z-A0B2C3-50-16.0D18晶振,頻率16M,負載18pF,頻率穩定性50ppm,工作溫度-10~60°C,無鉛環保晶振,低成本晶振,6G路由器晶振,儲存卡晶振,DVD家電影音系統晶...
.jpg)
Cardinal晶振,CSM1Z-A0B2C3-50-16.0D18,6G路由器晶振,美國Cardinal晶振,CSM1無源晶振,石英晶體諧振器,HC-49SMD晶振,CSM1Z-A0B2C3-50-16.0D18晶振,頻率16M,負載18pF,頻率穩定性50ppm,工作溫度-10~60°C,無鉛環保晶振,低成本晶振,6G路由器晶振,儲存卡晶振,DVD家電影音系統晶振,數字水表晶振.
.gif)
Cardinal晶振,CSM1Z-A0B2C3-50-16.0D18,6G路由器晶振參數表
| 規格參數 | 數值 |
| 頻率 | 16MHz |
| 頻率容差 | ±30ppm |
| 頻率穩定性 |
±50ppm
|
| 工作溫度 | -10 to +60°C |
| 負載 | 18pF |
| 并聯電容 | 7 pF Max |
|
<30Ω
|
| 激勵功率 |
1.0mW Max
|
| 儲存溫度 | -40~85°C |
| 老化 | ±5ppm/year |
.gif)

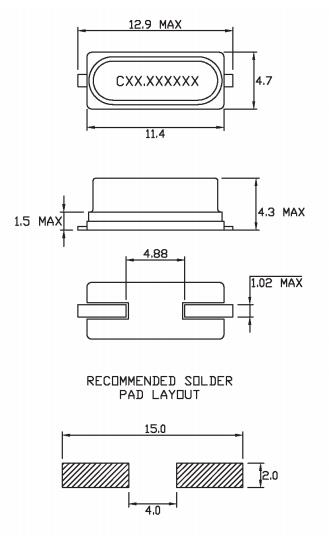

Cardinal晶振,CSM1Z-A0B2C3-50-16.0D18,6G路由器晶振尺寸圖
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率穩定度 | ESR 電阻 | 工作溫度 |
| CSM1Z-A5B2C3-40-14.31818D18 | Cardinal晶振 | CSM1 | 14.31818MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C5-60-24.0D18 | Cardinal晶振 | CSM1 | 24MHz | ±50ppm | 60 Ohm | -20°C ~ 70°C |
| CSM1Z-A2B2C3-40-30.0D18 | Cardinal晶振 | CSM1 | 30MHz | ±50ppm | 40 Ohm | -40°C ~ 85°C |
| CSM1Z-A0B2C3-50-22.1184D18 | Cardinal晶振 | CSM1 | 22.1184MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-100-5.0D18 | Cardinal晶振 | CSM1 | 5MHz | ±50ppm | 100 Ohm | -10°C ~ 60°C |
| CSM1Z-A5B2C5-40-14.7456D18 | Cardinal晶振 | CSM1 | 14.7456MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-40-25.0D18-F | Cardinal晶振 | CSM1 | 25MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-50-16.0D18 | Cardinal晶振 | CSM1 | 16MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A5B2C5-50-20.0D18 | Cardinal晶振 | CSM1 | 20MHz | ±50ppm | 50 Ohm | -20°C ~ 70°C |
| CSM1Z-A1B2C3-90-8.0D18 | Cardinal晶振 | CSM1 | 8MHz | ±50ppm | 90 Ohm | -10°C ~ 70°C |
| CSM1Z-A5B2C5-40-11.0592D18 | Cardinal晶振 | CSM1 | 11.0592MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-50-15.360D18 | Cardinal晶振 | CSM1 | 15.36MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-50-19.6608D18 | Cardinal晶振 | CSM1 | 19.6608MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A5B2C3-40-14.7456D20 | Cardinal晶振 | CSM1 | 14.7456MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-80-13.5D18 | Cardinal晶振 | CSM1 | 13.5MHz | ±50ppm | 80 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-50-16.257D18 | Cardinal晶振 | CSM1 | 16.257MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A5B2C3-40-24.576D18 | Cardinal晶振 | CSM1 | 24.576MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-50-16.000312D18 | Cardinal晶振 | CSM1 | 16.000312MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-50-18.0D18 | Cardinal晶振 | CSM1 | 18MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A5B2C3-200-3.6864D18 | Cardinal晶振 | CSM1 | 3.6864MHz | ±50ppm | 200 Ohm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-150-4.9152D18 | Cardinal晶振 | CSM1 | 4.915MHz | ±50ppm | 150 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-40-25.0D18 | Cardinal晶振 | CSM1 | 25MHz | ±50ppm | 40 Ohm | -10°C ~ 60°C |
| CSM1Z-A5B2C5-70-10.0D18 | Cardinal晶振 | CSM1 | 10MHz | ±50ppm | 70 Ohm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-50-25.175D18 | Cardinal晶振 | CSM1 | 25.175MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A5B2C3-120-6.144D18 | Cardinal晶振 | CSM1 | 6.144MHz | ±50ppm | 120 Ohm | -20°C ~ 70°C |
| CSM1-A1B2C3-50-20.0D16 | Cardinal晶振 | CSM1 | 20MHz | ±50ppm | 50 Ohm | -10°C ~ 70°C |
| CSM1Z-A5B2C5-150-3.6864D18 | Cardinal晶振 | CSM1 | 3.6864MHz | ±50ppm | 150 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C5-40-10.0D18 | Cardinal晶振 | CSM1 | 10MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-50-27.0D18 | Cardinal晶振 | CSM1 | 27MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-100-7.3728D18 | Cardinal晶振 | CSM1 | 7.3728MHz | ±50ppm | 100 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-100-6.144D18 | Cardinal晶振 | CSM1 | 6.144MHz | ±50ppm | 100 Ohm | -10°C ~ 60°C |
| CSM1Z-A5B2C3-40-27.0D18-F | Cardinal晶振 | CSM1 | 27MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-120-7.3728D18 | Cardinal晶振 | CSM1 | 7.3728MHz | ±50ppm | 120 Ohm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-50-28.63636D18 | Cardinal晶振 | CSM1 | 28.63636MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A5B2C3-60-9.216D18 | Cardinal晶振 | CSM1 | 9.216MHz | ±50ppm | 60 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-120-6.0D18 | Cardinal晶振 | CSM1 | 6MHz | ±50ppm | 120 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C5-120-7.3728D18 | Cardinal晶振 | CSM1 | 7.3728MHz | ±50ppm | 120 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-40-18.0D18 | Cardinal晶振 | CSM1 | 18MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-50-24.0D18 | Cardinal晶振 | CSM1 | 24MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-80-10.0D18 | Cardinal晶振 | CSM1 | 10MHz | ±50ppm | 80 Ohm | -10°C ~ 60°C |
| CSM1Z-A5B2C5-150-4.9152D18 | Cardinal晶振 | CSM1 | 4.9152MHz | ±50ppm | 150 Ohm | -20°C ~ 70°C |
| CSM1-A1B2C3-70-14.7456D20 | Cardinal晶振 | CSM1 | 14.7456MHz | ±50ppm | 70 Ohm | -10°C ~ 70°C |
| CSM1Z-A5B2C3-40-12.0D18 | Cardinal晶振 | CSM1 | 12MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C5-150-5.0D18 | Cardinal晶振 | CSM1 | 5MHz | ±50ppm | 150 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C5-150-5.0D18 | Cardinal晶振 | CSM1 | 5MHz | ±50ppm | 150 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C5-150-5.0D18 | Cardinal晶振 | CSM1 | 5MHz | ±50ppm | 150 Ohm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-80-12.0D18 | Cardinal晶振 | CSM1 | 12MHz | ±50ppm | 80 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-80-12.0D18 | Cardinal晶振 | CSM1 | 12MHz | ±50ppm | 80 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-80-12.0D18 | Cardinal晶振 | CSM1 | 12MHz | ±50ppm | 80 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-80-11.0592D18 | Cardinal晶振 | CSM1 | 11.0592MHz | ±50ppm | 80 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-80-11.0592D18 | Cardinal晶振 | CSM1 | 11.0592MHz | ±50ppm | 80 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-80-11.0592D18 | Cardinal晶振 | CSM1 | 11.0592MHz | ±50ppm | 80 Ohm | -10°C ~ 60°C |
| CSM1Z-A5B2C5-60-8.0D18 | Cardinal晶振 | CSM1 | 8MHz | ±50ppm | 60 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C5-60-8.0D18 | Cardinal晶振 | CSM1 | 8MHz | ±50ppm | 60 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C5-60-8.0D18 | Cardinal晶振 | CSM1 | 8MHz | ±50ppm | 60 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-30-25.0D20 | Cardinal晶振 | CSM1 | 25MHz | ±50ppm | 30 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-30-25.0D20 | Cardinal晶振 | CSM1 | 25MHz | ±50ppm | 30 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-30-25.0D20 | Cardinal晶振 | CSM1 | 25MHz | ±50ppm | 30 Ohm | -20°C ~ 70°C |
| CSM1Z-A3B1C3-200-3.6864D18 | Cardinal晶振 | CSM1 | 3.6864MHz | ±100ppm | 200 Ohm | -55°C ~ 125°C |
| CSM1Z-A3B1C3-200-3.6864D18 | Cardinal晶振 | CSM1 | 3.6864MHz | ±100ppm | 200 Ohm | -55°C ~ 125°C |
| CSM1Z-A3B1C3-200-3.6864D18 | Cardinal晶振 | CSM1 | 3.6864MHz | ±100ppm | 200 Ohm | -55°C ~ 125°C |
| CSM1Z-A5B2C3-60-8.0D18 | Cardinal晶振 | CSM1 | 8MHz | ±50ppm | 60 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-60-8.0D18 | Cardinal晶振 | CSM1 | 8MHz | ±50ppm | 60 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-60-8.0D18 | Cardinal晶振 | CSM1 | 8MHz | ±50ppm | 60 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-40-13.0D18 | Cardinal晶振 | CSM1 | 13MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-40-13.0D18 | Cardinal晶振 | CSM1 | 13MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-40-13.0D18 | Cardinal晶振 | CSM1 | 13MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-70-14.7456D18 | Cardinal晶振 | CSM1 | 14.7456MHz | ±50ppm | 70 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-70-14.7456D18 | Cardinal晶振 | CSM1 | 14.7456MHz | ±50ppm | 70 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-70-14.7456D18 | Cardinal晶振 | CSM1 | 14.7456MHz | ±50ppm | 70 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-50-17.734475D18 | Cardinal晶振 | CSM1 | 17.734475MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-50-17.734475D18 | Cardinal晶振 | CSM1 | 17.734475MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-50-17.734475D18 | Cardinal晶振 | CSM1 | 17.734475MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A1B2C3-200-3.6864D20 | Cardinal晶振 | CSM1 | 3.6864MHz | ±50ppm | 200 Ohm | -10°C ~ 70°C |
| CSM1Z-A1B2C3-200-3.6864D20 | Cardinal晶振 | CSM1 | 3.6864MHz | ±50ppm | 200 Ohm | -10°C ~ 70°C |
| CSM1Z-A1B2C3-200-3.6864D20 | Cardinal晶振 | CSM1 | 3.6864MHz | ±50ppm | 200 Ohm | -10°C ~ 70°C |
| CSM1Z-A0B2C3-50-18.432D18 | Cardinal晶振 | CSM1 | 18.432MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-50-18.432D18 | Cardinal晶振 | CSM1 | 18.432MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-50-18.432D18 | Cardinal晶振 | CSM1 | 18.432MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A5B2C3-40-16.0D18 | Cardinal晶振 | CSM1 | 16MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-40-16.0D18 | Cardinal晶振 | CSM1 | 16MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-40-16.0D18 | Cardinal晶振 | CSM1 | 16MHz | ±50ppm | 40 Ohm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-200-3.579545D18 | Cardinal晶振 | CSM1 | 3.579545MHz | ±50ppm | 200 Ohm | -10°C ~ 70°C |
| CSM1Z-A0B2C3-200-3.579545D18 | Cardinal晶振 | CSM1 | 3.579545MHz | ±50ppm | 200 Ohm | -10°C ~ 70°C |
| CSM1Z-A0B2C3-200-3.579545D18 | Cardinal晶振 | CSM1 | 3.579545MHz | ±50ppm | 200 Ohm | -10°C ~ 70°C |
| CSM1Z-A0B2C3-50-20.0D18 | Cardinal晶振 | CSM1 | 20MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-50-20.0D18 | Cardinal晶振 | CSM1 | 20MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-50-20.0D18 | Cardinal晶振 | CSM1 | 20MHz | ±50ppm | 50 Ohm | -10°C ~ 60°C |
